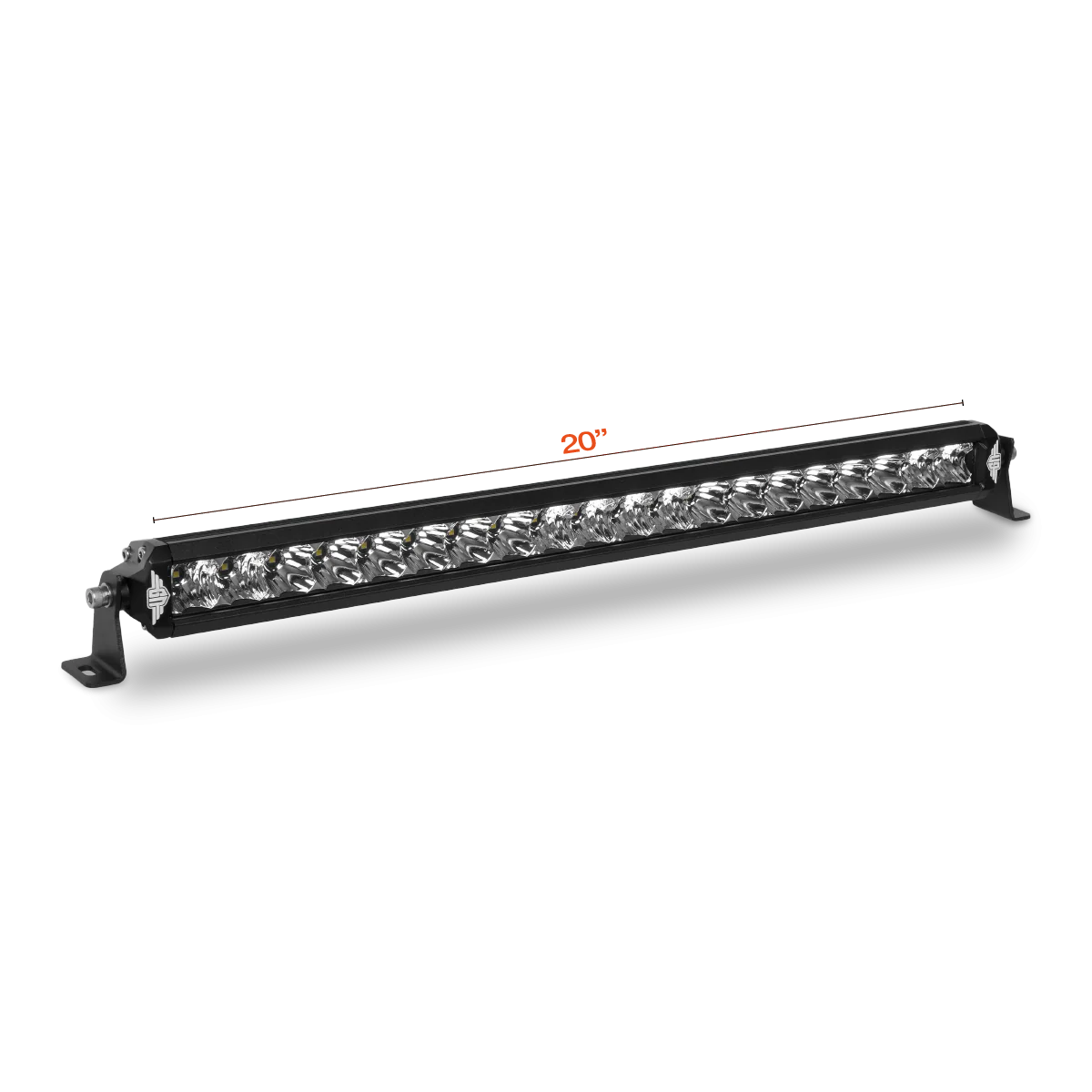

Ultimate9 LED Light Bar 20"

Face the challenges of the dark with the Ultimate9 LED Light Bars.

Our sleek, single row LED bars incorporate a screw-less bezel design for superior sealing against the elements, fitted with Gore® PolyVents for ultimate housing ventilation.

Encased in high-grade aluminium and protected by impact-resistant Lexan® Polycarbonate lenses, their rugged construction will last for years to come.



Features:
  • Water & Dust Protection: Tested to the highest IP ratings, IP68 and IP69K.
    IP68 for long term submersion and total dust ingress.
    IP69K for stream jet cleaning.

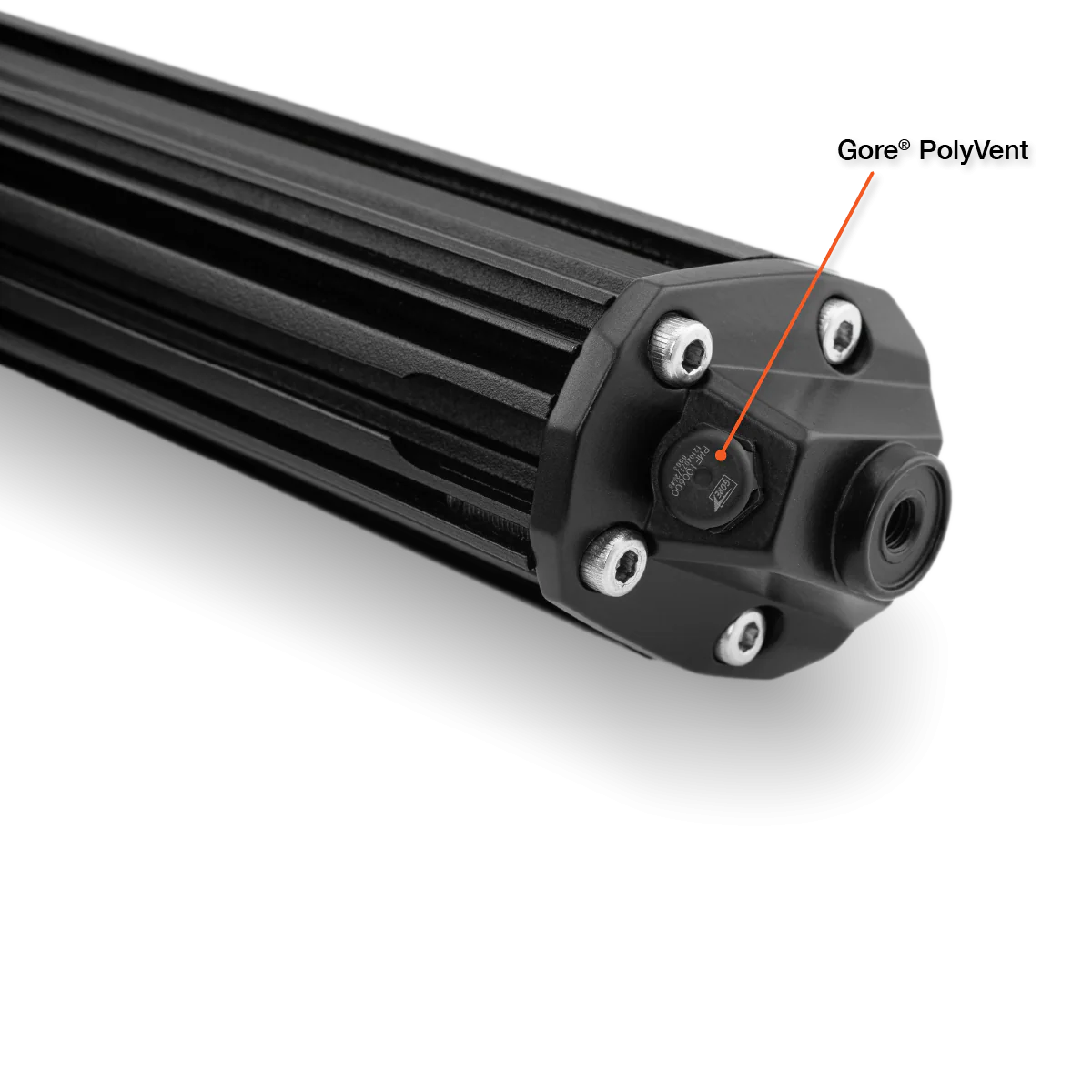

  • Ventilation: Gore® PolyVent breather valve equalises internal pressure to prevent seal failure, moisture and dust ingress as the aluminium housing heats and cools - eliminating condensation & fogging.
  • Housing: 6063-grade aluminium housing with 304 Stainless Steel fasteners. Overlaid with a UV & corrosion resistant Dupont® coating.
  • Lens: GE Lexan® Polycarbonate lenses are virtually indestructible, UV, scratch and impact-resistant; they negate the need for additional protective covers.
  • Optics: Flood & Spot reflector beam combination with 20°(Flood) & 8°(Spot) spreads.

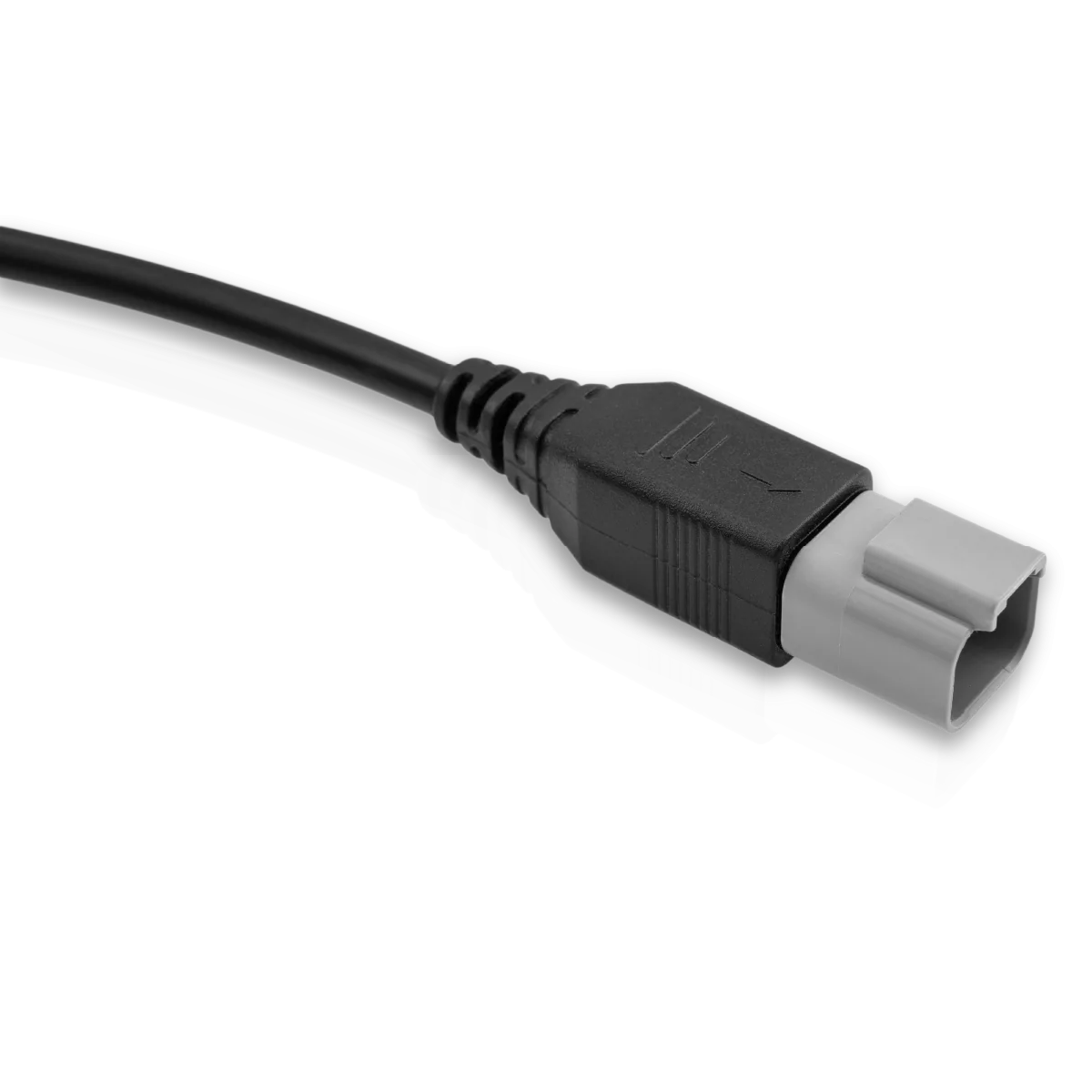

  • Technology: Grade A Osram 5W LED chips & sealed DT connectors.



Specifications:

  • Input Power: 9-36V
  • Beam Pattern: Flood & Spot Combination
  • Beam Spread: 8° Spot & 20° Flood
  • Power: 100W
  • Current Draw: 6.6A @ 13.2V
  • Raw Lumen: 9,520 lm
  • Effective Lumen: 5,015 lm
  • Beam @ 1 Lux: 528m
  • LED Chips: Osram 5W
  • Colour Temp: 6000-6500K
  • Housing Material: 6063 Aluminium
  • Housing Coating: DuPont®
  • Lens Material: GE Lexan® Polycarbonate
  • IP Rating: IP68 / IP69K
  • Ventilation: Gore® PolyVent
  • Weight: 1.68Kg
  • Body Dimensions: (L)560 x (H)46 x (W)49mm
  • Lens Dimensions: 20" (508mm)
  • Connector Type: DT Sealed
  • Operating Temp: -40ÂşC - 145ÂşC
  • Certification: CE, RoHS, RCM



Required Harness: Ultimate9 Twin Output Harness



Kit Includes:

• LED Light Bar
• Side-Mount Brackets & Hardware

Harnesses available separately*



What Harness Do I Need?*

Ultimate9 20", 26", & 30" LED Light Bars, more often fitted at the front of vehicles, utilise the Twin Output Harness



Note: The Twin Output Harness is capable of powering two 20", 26", or 30" bars.

Face the challenges of the dark with the Ultimate9 LED Light Bars.

Our sleek, single row LED bars incorporate a screw-less bezel design for superior sealing against the elements, fitted with Gore® PolyVents for ultimate housing ventilation.

Encased in high-grade aluminium and protected by impact-resistant Lexan® Polycarbonate lenses, their rugged construction will last for years to come.



Features:
  • Water & Dust Protection: Tested to the highest IP ratings, IP68 and IP69K.
    IP68 for long term submersion and total dust ingress.
    IP69K for stream jet cleaning.
  • Ventilation: Gore® PolyVent breather valve equalises internal pressure to prevent seal failure, moisture and dust ingress as the aluminium housing heats and cools - eliminating condensation & fogging.
  • Housing: 6063-grade aluminium housing with 304 Stainless Steel fasteners. Overlaid with a UV & corrosion resistant Dupont® coating.
  • Lens: GE Lexan® Polycarbonate lenses are virtually indestructible, UV, scratch and impact-resistant; they negate the need for additional protective covers.
  • Optics: Flood & Spot reflector beam combination with 20°(Flood) & 8°(Spot) spreads.
  • Technology: Grade A Osram 5W LED chips & sealed DT connectors.



Specifications:

  • Input Power: 9-36V
  • Beam Pattern: Flood & Spot Combination
  • Beam Spread: 8° Spot & 20° Flood
  • Power: 100W
  • Current Draw: 6.6A @ 13.2V
  • Raw Lumen: 9,520 lm
  • Effective Lumen: 5,015 lm
  • Beam @ 1 Lux: 528m
  • LED Chips: Osram 5W
  • Colour Temp: 6000-6500K
  • Housing Material: 6063 Aluminium
  • Housing Coating: DuPont®
  • Lens Material: GE Lexan® Polycarbonate
  • IP Rating: IP68 / IP69K
  • Ventilation: Gore® PolyVent
  • Weight: 1.68Kg
  • Body Dimensions: (L)560 x (H)46 x (W)49mm
  • Lens Dimensions: 20" (508mm)
  • Connector Type: DT Sealed
  • Operating Temp: -40ÂşC - 145ÂşC
  • Certification: CE, RoHS, RCM



Required Harness: Ultimate9 Twin Output Harness



Kit Includes:

• LED Light Bar
• Side-Mount Brackets & Hardware

Harnesses available separately*



What Harness Do I Need?*

Ultimate9 20", 26", & 30" LED Light Bars, more often fitted at the front of vehicles, utilise the Twin Output Harness



Note: The Twin Output Harness is capable of powering two 20", 26", or 30" bars.

Select Options:
From $45.53

Original: $130.09

-65%
Ultimate9 LED Light Bar 20"—

$130.09

$45.53
