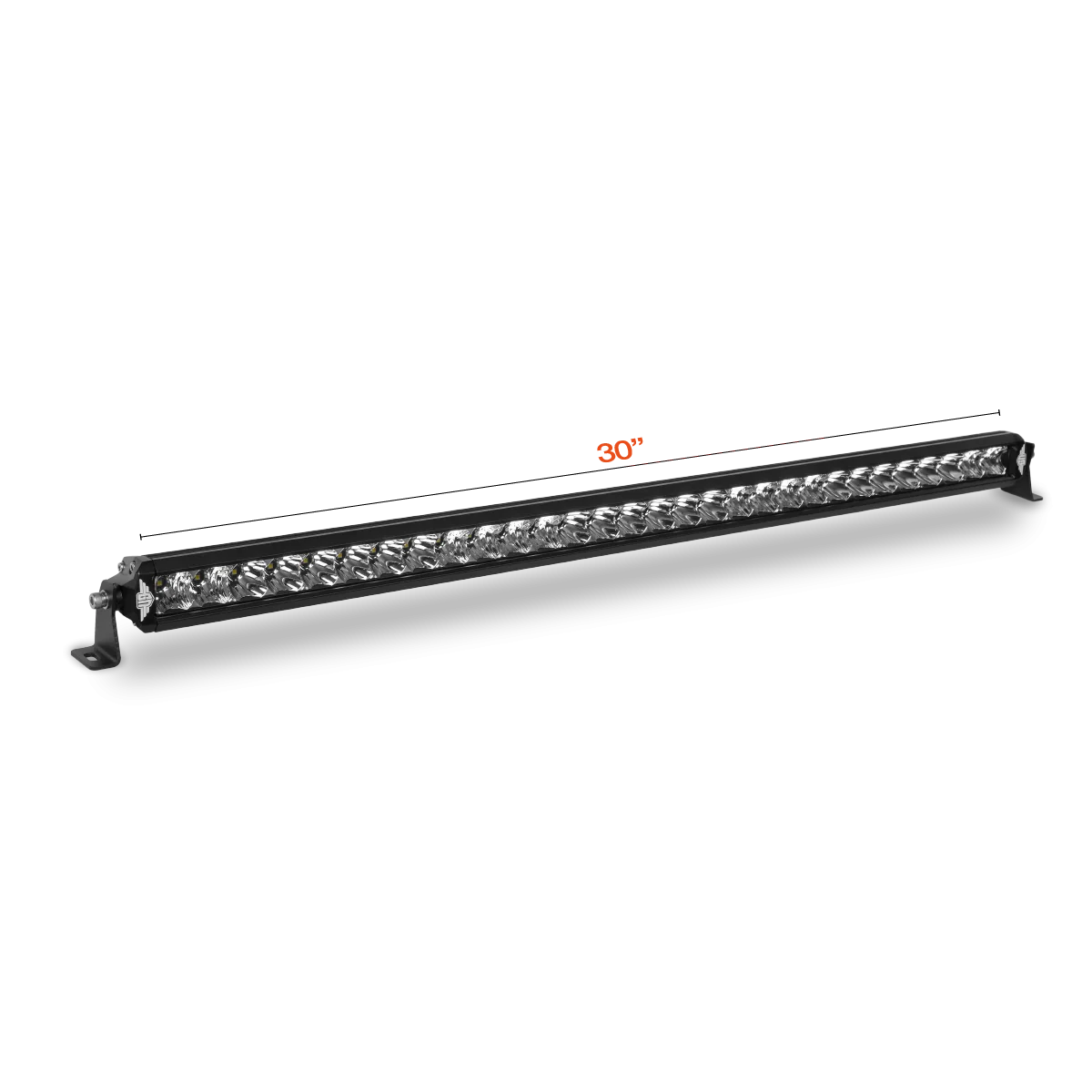

Ultimate9 LED Light Bar 30"
Face the challenges of the dark with the Ultimate9 LED Light Bars.
Our sleek, single row LED bars incorporate a screw-less bezel design for superior sealing against the elements, fitted with Gore® PolyVents for ultimate housing ventilation.
Encased in high-grade aluminium and protected by impact-resistant Lexan® Polycarbonate lenses, their rugged construction will last for years to come.
Features:
-
Water & Dust Protection: Tested to the highest IP ratings, IP68 and IP69K.
IP68 for long term submersion and total dust ingress.

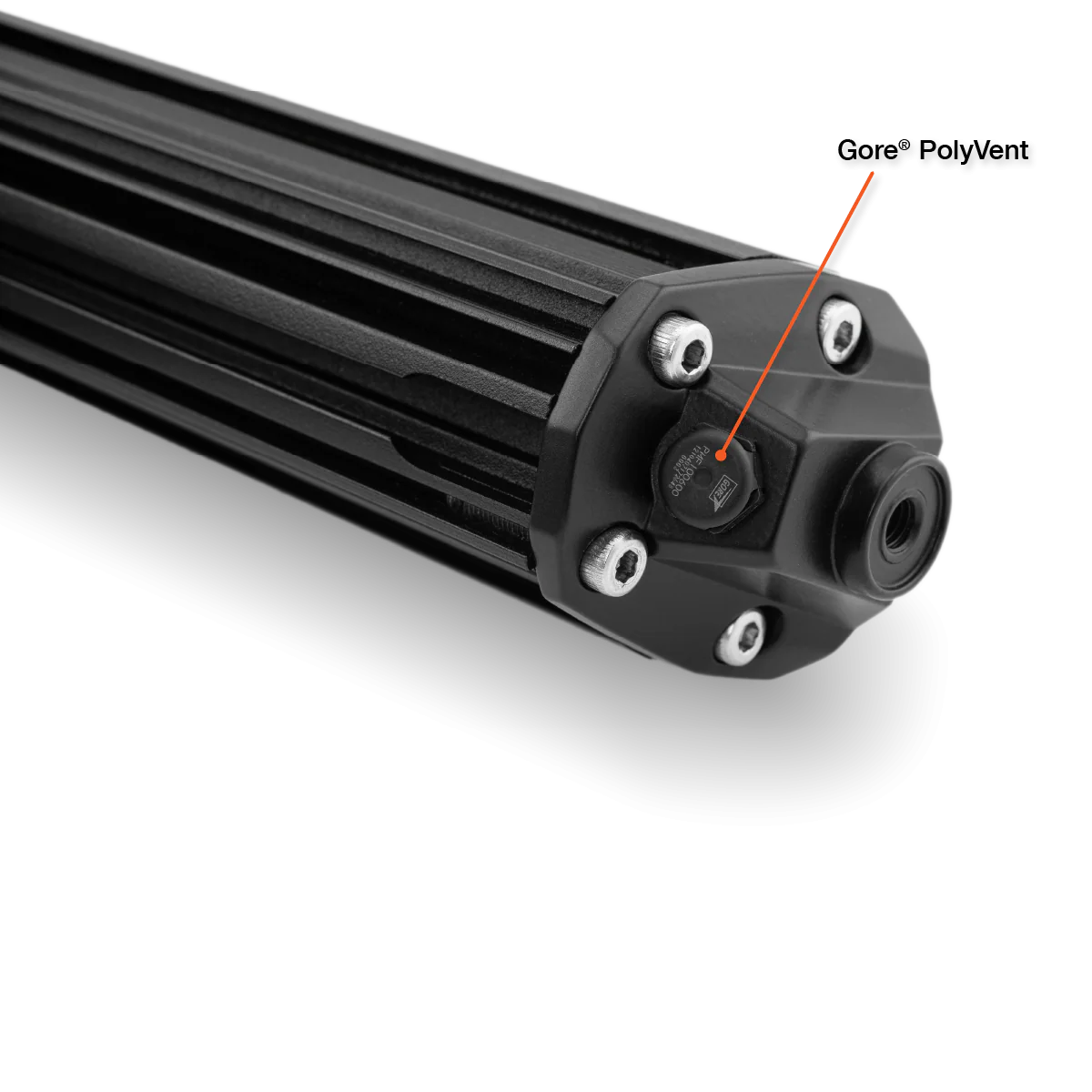

IP69K for stream jet cleaning. - Ventilation: Gore® PolyVent breather valve equalises internal pressure to prevent seal failure, moisture and dust ingress as the aluminium housing heats and cools - eliminating condensation & fogging.
- Housing: 6063-grade aluminium housing with 304 Stainless Steel fasteners. Overlaid with a UV & corrosion resistant Dupont® coating.
- Lens: GE Lexan® Polycarbonate lenses are virtually indestructible, UV, scratch and impact-resistant; they negate the need for additional protective covers.
- Optics: Flood & Spot reflector beam combination with 20°(Flood) & 8°(Spot) spreads.
- Technology: Grade A Osram 5W LED chips & sealed DT connectors.
- Housing Material: 6063 Aluminium
- Housing Coating: DuPont®
- Lens Material: GE Lexan® Polycarbonate
- IP Rating: IP68 / IP69K
- Ventilation: Gore® PolyVent
- Weight: 2.37Kg
- Body Dimensions: (L)812 x (H)45 x (W)49mm
- Lens Dimensions: 30" (811mm)
- Connector Type: DT Sealed
- Operating Temp: -40ºC - 145ºC
- Certification: CE, RoHS, RCM
Required Harness: Ultimate9 Twin Output Harness
Kit Includes:
• LED Light Bar
• Side-Mount Brackets & Hardware
Harnesses available separately*
What Harness Do I Need?*
Ultimate9 20", 26", & 30" LED Light Bars, more often fitted at the front of vehicles, utilise the Ultimate9 Twin Output Harness
Note: The Twin Output Harness is capable of powering two 20", 26", or 30" bars.
Face the challenges of the dark with the Ultimate9 LED Light Bars.
Our sleek, single row LED bars incorporate a screw-less bezel design for superior sealing against the elements, fitted with Gore® PolyVents for ultimate housing ventilation.
Encased in high-grade aluminium and protected by impact-resistant Lexan® Polycarbonate lenses, their rugged construction will last for years to come.
Features:
-
Water & Dust Protection: Tested to the highest IP ratings, IP68 and IP69K.
IP68 for long term submersion and total dust ingress.
IP69K for stream jet cleaning. - Ventilation: Gore® PolyVent breather valve equalises internal pressure to prevent seal failure, moisture and dust ingress as the aluminium housing heats and cools - eliminating condensation & fogging.
- Housing: 6063-grade aluminium housing with 304 Stainless Steel fasteners. Overlaid with a UV & corrosion resistant Dupont® coating.
- Lens: GE Lexan® Polycarbonate lenses are virtually indestructible, UV, scratch and impact-resistant; they negate the need for additional protective covers.
- Optics: Flood & Spot reflector beam combination with 20°(Flood) & 8°(Spot) spreads.
- Technology: Grade A Osram 5W LED chips & sealed DT connectors.
- Housing Material: 6063 Aluminium
- Housing Coating: DuPont®
- Lens Material: GE Lexan® Polycarbonate
- IP Rating: IP68 / IP69K
- Ventilation: Gore® PolyVent
- Weight: 2.37Kg
- Body Dimensions: (L)812 x (H)45 x (W)49mm
- Lens Dimensions: 30" (811mm)
- Connector Type: DT Sealed
- Operating Temp: -40ºC - 145ºC
- Certification: CE, RoHS, RCM
Required Harness: Ultimate9 Twin Output Harness
Kit Includes:
• LED Light Bar
• Side-Mount Brackets & Hardware
Harnesses available separately*
What Harness Do I Need?*
Ultimate9 20", 26", & 30" LED Light Bars, more often fitted at the front of vehicles, utilise the Ultimate9 Twin Output Harness
Note: The Twin Output Harness is capable of powering two 20", 26", or 30" bars.
