Name: Ultimate9 LED Light Bar 40"
Brand: The Cruiser Store
SKU: ultimate9-led-light-bar-40
Availability: InStock

🎉 Up to 70% Off Selected ItemsShop Sale

Home Store

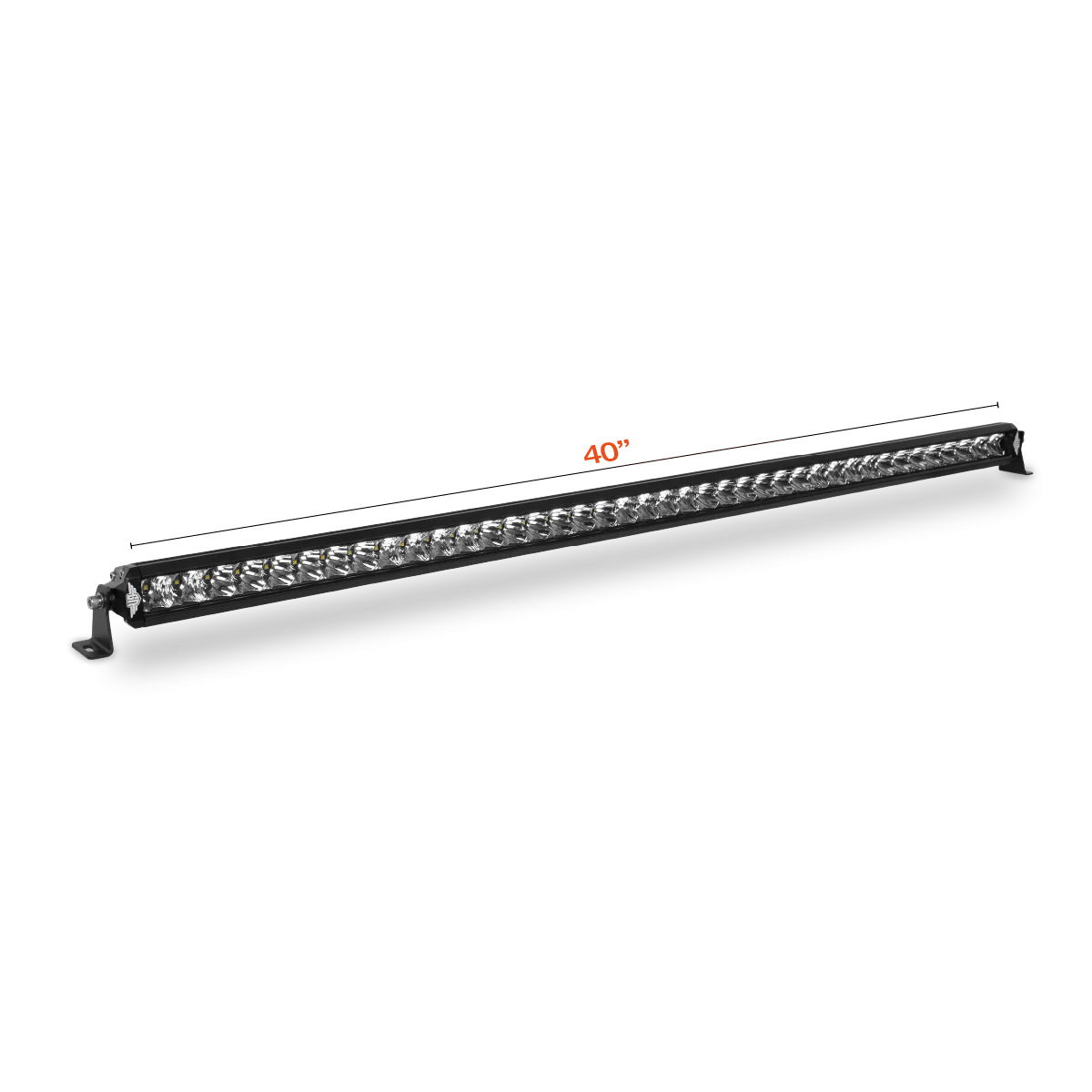

Ultimate9 LED Light Bar 40"

1 / 6

Ultimate9 LED Light Bar 40"

Face the challenges of the dark with the Ultimate9 LED Light Bars.

This sleek, single row LED bar incorporate a screw-less bezel design for superior sealing against the elements, fitted with Gore^® PolyVents for ultimate housing ventilation.

Encased in high-grade aluminium and protected by impact-resistant Lexan^® Polycarbonate lenses, their rugged construction will last for years to come.

Features:

Water & Dust Protection: Tested to the highest IP ratings, IP68 and IP69K.
IP68 for long term submersion and total dust ingress.
IP69K for stream jet cleaning.

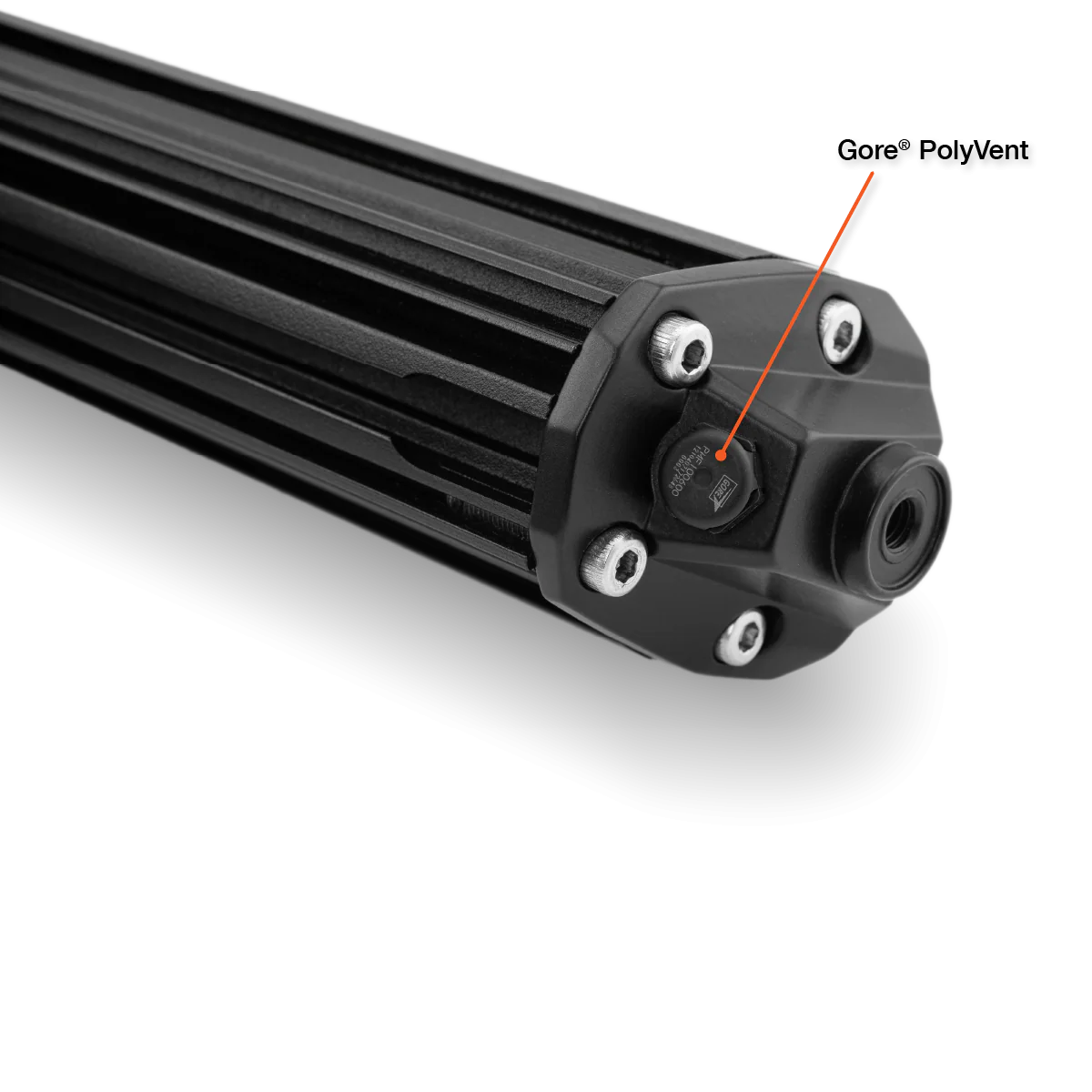

Ventilation: Gore^® PolyVent breather valve equalises internal pressure to prevent seal failure, moisture and dust ingress as the aluminium housing heats and cools - eliminating condensation & fogging.
Housing: 6063-grade aluminium housing with 304 Stainless Steel fasteners. Overlaid with a UV & corrosion resistant Dupont^® coating.
Lens: GE Lexan® Polycarbonate lenses are virtually indestructible, UV, scratch and impact-resistant; they negate the need for additional protective covers.
Optics: Flood & Spot reflector beam combination with 20°(Flood) & 8°(Spot) spreads.
Technology: Grade A Osram 5W LED chips & sealed DT connectors.

Specifications:

Input Power: 9-36V
Beam Pattern: Flood & Spot Combination
Beam Spread: 8° Spot & 20° Flood
Power: 200W
Current Draw: 14.4A @ 13.2V
Raw Lumen: 19,040 lm
Effective Lumen: 9,406 lm
Beam @ 1 Lux: 610m
LED Chips: Osram 5W
Colour Temp: 6000-6500K
Housing Material: 6063 Aluminium
Housing Coating: DuPont®
Lens Material: GE Lexan® Polycarbonate
IP Rating: IP68 / IP69K
Ventilation: Gore® PolyVent
Weight: 2.7Kg
Body Dimensions: (L)1065 x (H)46 x (W)49mm
Lens Dimensions: 40" (1016mm)

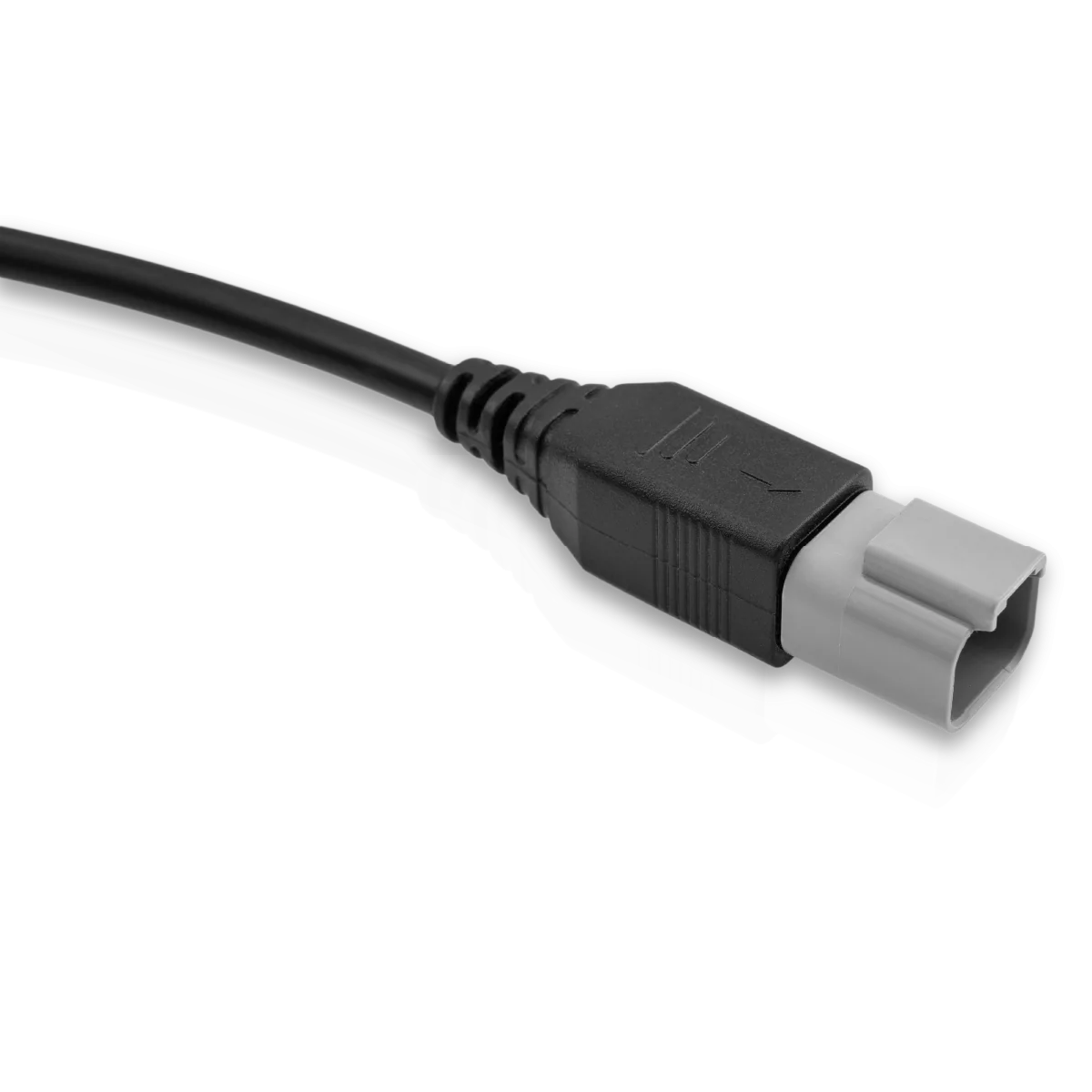

Connector Type: DT Sealed
Operating Temp: -40ºC - 145ºC
Certification: CE, RoHS, RCM

Kit Includes:

• LED Light Bar

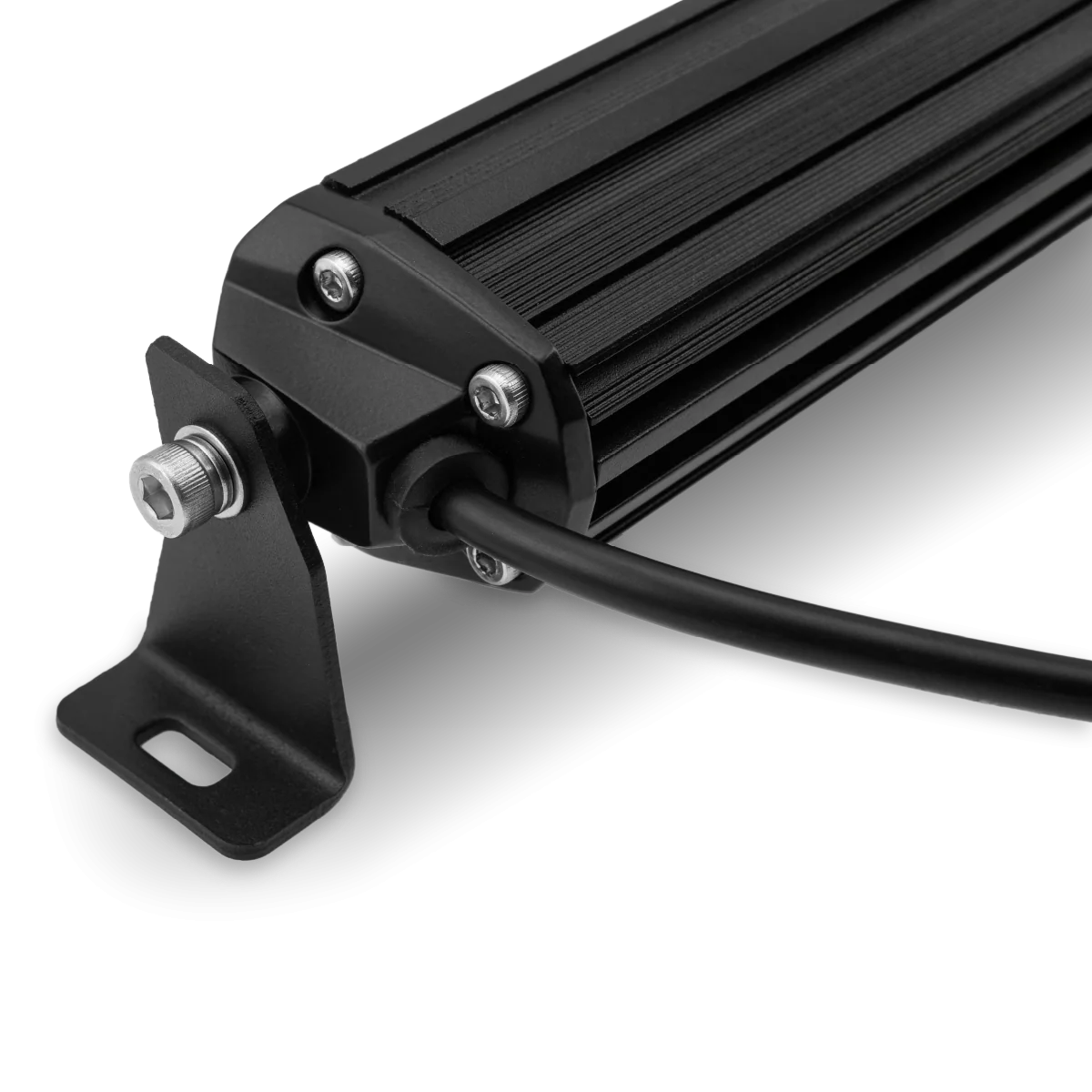

• Side-Mount Brackets & Hardware

Harnesses available separately*

What Harness Do I Need?*

Ultimate9 40" & 50" Light Bars, intended for roof mounting, utilise our Single Output Harnesses.

Note: The Single Output Harnesses is capable of powering only one 40" or 50" bar.

Lighting installed further from a battery, such as the roof of a vehicle, can experience a voltage drop - a drop in electrical potential from travelling along a longer path. Our Single Output Harness uses a larger DTP connector & heavier gauge AWG wire to reduce voltage drop.

Face the challenges of the dark with the Ultimate9 LED Light Bars.

This sleek, single row LED bar incorporate a screw-less bezel design for superior sealing against the elements, fitted with Gore^® PolyVents for ultimate housing ventilation.

Encased in high-grade aluminium and protected by impact-resistant Lexan^® Polycarbonate lenses, their rugged construction will last for years to come.

Features:

Water & Dust Protection: Tested to the highest IP ratings, IP68 and IP69K.
IP68 for long term submersion and total dust ingress.
IP69K for stream jet cleaning.
Ventilation: Gore^® PolyVent breather valve equalises internal pressure to prevent seal failure, moisture and dust ingress as the aluminium housing heats and cools - eliminating condensation & fogging.
Housing: 6063-grade aluminium housing with 304 Stainless Steel fasteners. Overlaid with a UV & corrosion resistant Dupont^® coating.
Lens: GE Lexan® Polycarbonate lenses are virtually indestructible, UV, scratch and impact-resistant; they negate the need for additional protective covers.
Optics: Flood & Spot reflector beam combination with 20°(Flood) & 8°(Spot) spreads.
Technology: Grade A Osram 5W LED chips & sealed DT connectors.

Specifications:

Kit Includes:

• LED Light Bar
• Side-Mount Brackets & Hardware

Harnesses available separately*

What Harness Do I Need?*

Ultimate9 40" & 50" Light Bars, intended for roof mounting, utilise our Single Output Harnesses.

Note: The Single Output Harnesses is capable of powering only one 40" or 50" bar.
